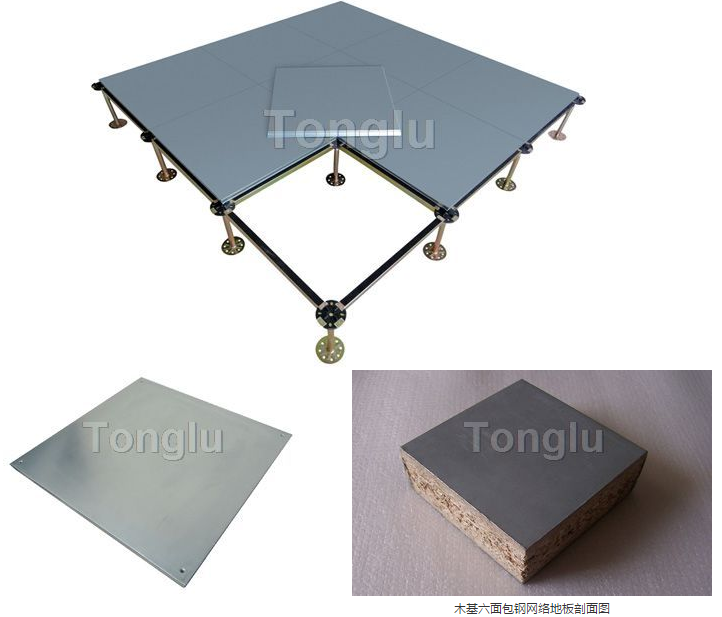

Steel Encased Wood Core Network Raised Access Floor

详细说明：

QQ截图20180306102313

Interduction of Products
Wood Core production technology is same as Steel Encased Calcium Sulphate network raised access floor, base material is high strength chipboard.

Application
Wide range of the application all kinds of top grade office.

Characteristics
High loading capacity and light weight,sound-proofing and good sealing..
Elegant appearance, the core encapsulated by galvanized steel.
Panels corner could with or without lock holes.

Technical Specification

Type	Internoal	Size (mm)	Fire Performance	Conzentrated			Impact load N	Ultimate load N	Uniform load N	Rolling load
Type	Internoal	Size (mm)	Fire Performance	LB	N	Kg	Impact load N	Ultimate load N	Uniform load N	10 Times	10000 Times
TL-4001	FS800	60060030	B1	≥800	≥3550	≥363	≥536	≥11250	≥16100	3560	2670
TL-4002	FS1000		B1	≥1000	≥4450	≥453	≥670	≥13350	≥23000	4450	3560
TL-4003	FS1250		B1	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
TL-4004	FS1500		B1	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
