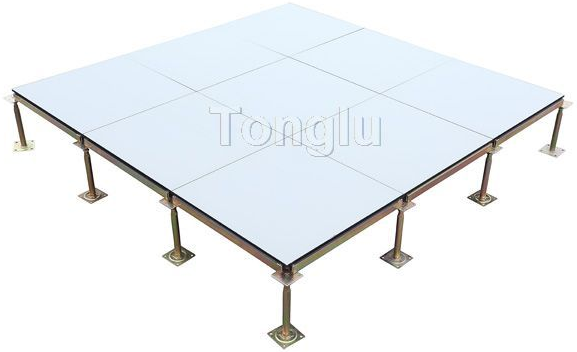

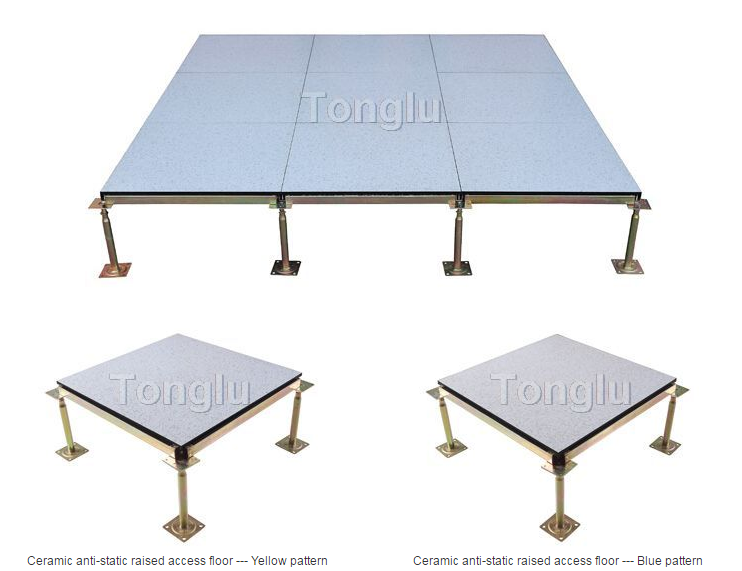

    Ceramic Cover Raised Access Floor

    Ceramic Cover Raised Access Floor
    详细说明:




    All steel shell structure, high qualityGB#425 cement in filled .GB anti-static ceramic cover, Low plane is SPCD deep stretched panel, surface panel is SPCC hard steel, with “L” type edge trim.
    The pedestal is formed by molding, riveted structure, screw rod adjust the height at precision; Stringer is made with galvanized standard tube, good flatness.

    Technical Specification

    TypeInternoalSize (mm)Fire
    Performance
    ConzentratedImpact load
    N
    Ultimate load
    N
    Uniform load
    N
    Rolling load
    LBNKg10 Times10000 Times
    TL-G-2001FS662600*600 *40/45A≥662≥2950≥301≥445≥8850≥1250029462356
    TL-G-2002FS800600*600 *40/45A≥800≥3550≥363≥536≥11250≥1610035602670
    TL-G-2003FS1000600*600 *40/45A≥1000≥4450≥453≥670≥13350≥2300044503560
